Fire Sprinkler System
Water / Foam Sprinkler Fire Fighting System consists of fire sprinklers attached to the fire fighting pipeline and are installed at the top on ceiling or on the wall. The water sprinkler fire fighting system may be wet type of dry type depending upon the temperature and distance of fire fighting water source from the hazard and nature of fire hazard.

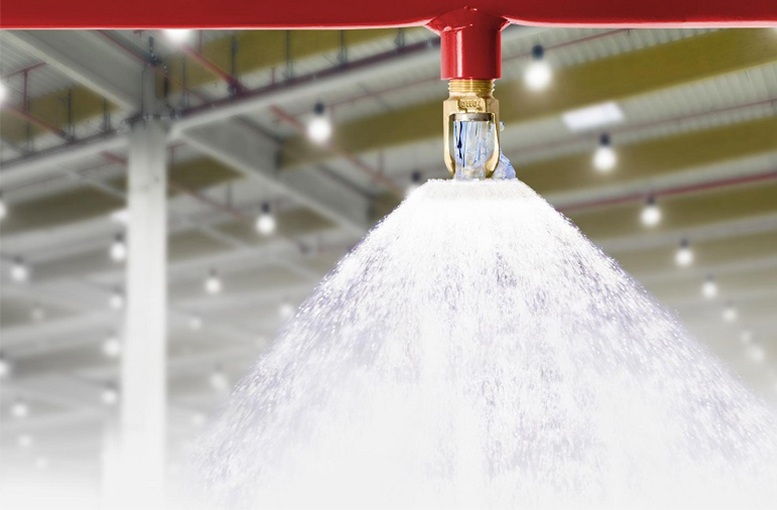

In dry type sprinkler dry air or nitrogen is used. The Water / Foam Sprinkler fire fighting system is controlled by the alarm check valves. The fire sprinkler is consists of bulb and deflector. Bulb is filled with heat sensitive fluid. When the temperature of the surrounding increase the liquid in the bulb expand, ruptured the bulb glass, the fire sprinkler orifice is opened and water sprinkler fire fighting system is activated.
The fire sprinklers have deflector type head to project the water stream at particular position. In Foam sprinkler fire fighting system foam is injected into the fire fighting pipeline with foam proportioner and open type fire fighting sprinklers are installed. The whole fire fighting system is control by deluge valve via any detection system.
